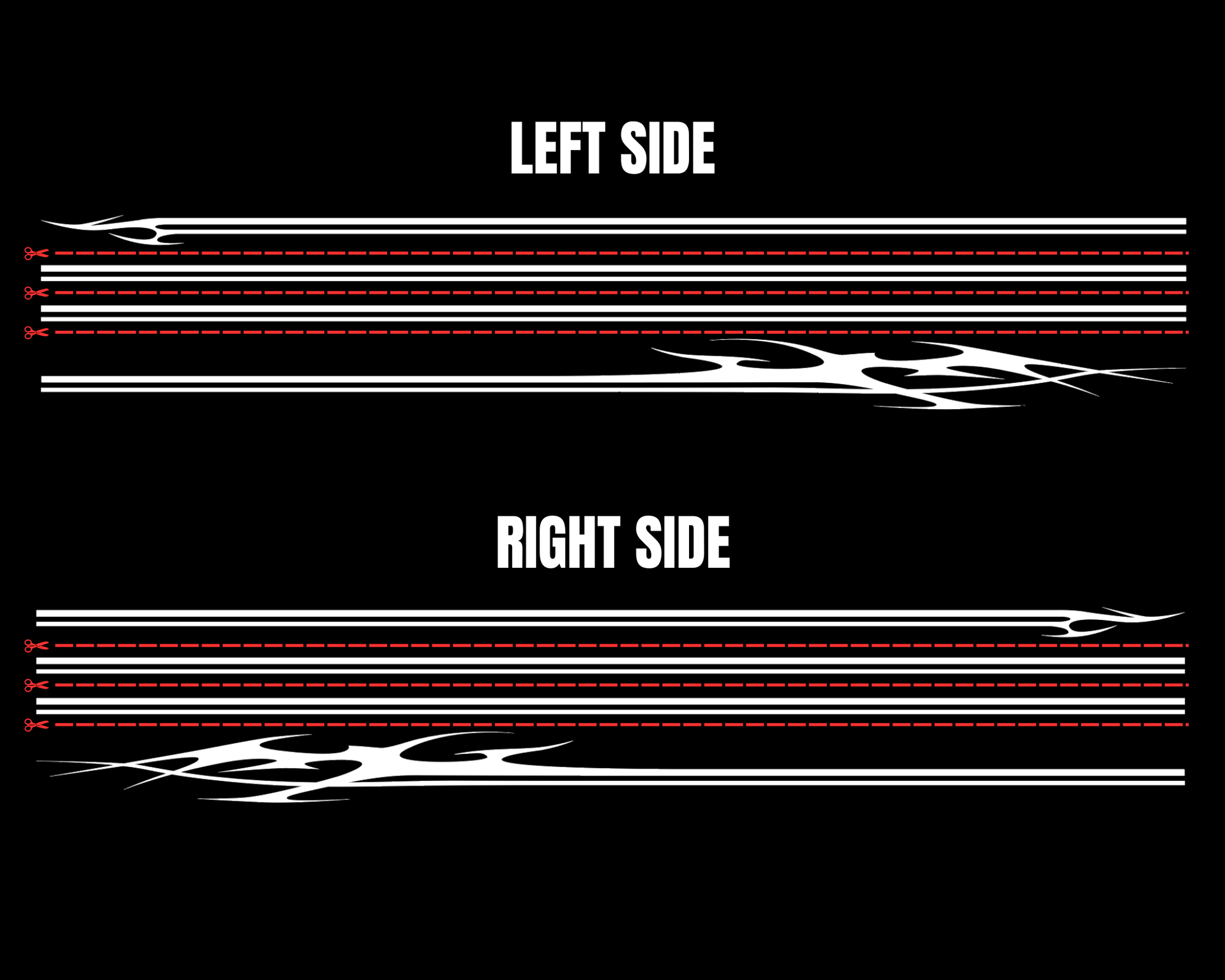

Before installing, carefully cut out each section from the strips
4-door: 4 pieces per side
2-door: 3 pieces per side
Preparation (VERY IMPORTANT)
- Clean the car first
- Wipe the application area with isopropyl alcohol (IPA) or soapy water + microfiber
- Your car cannot be waxed or ceramic coated
- Fully dry the surface before installing
- Ideal temp: 60°F-80°F (15°C–27°C)
Below this, lightly heat the surface with a heat gun
Tools needed
- Masking tape
- Squeegee or credit card
- X-acto knife or scissors
- Measuring tape

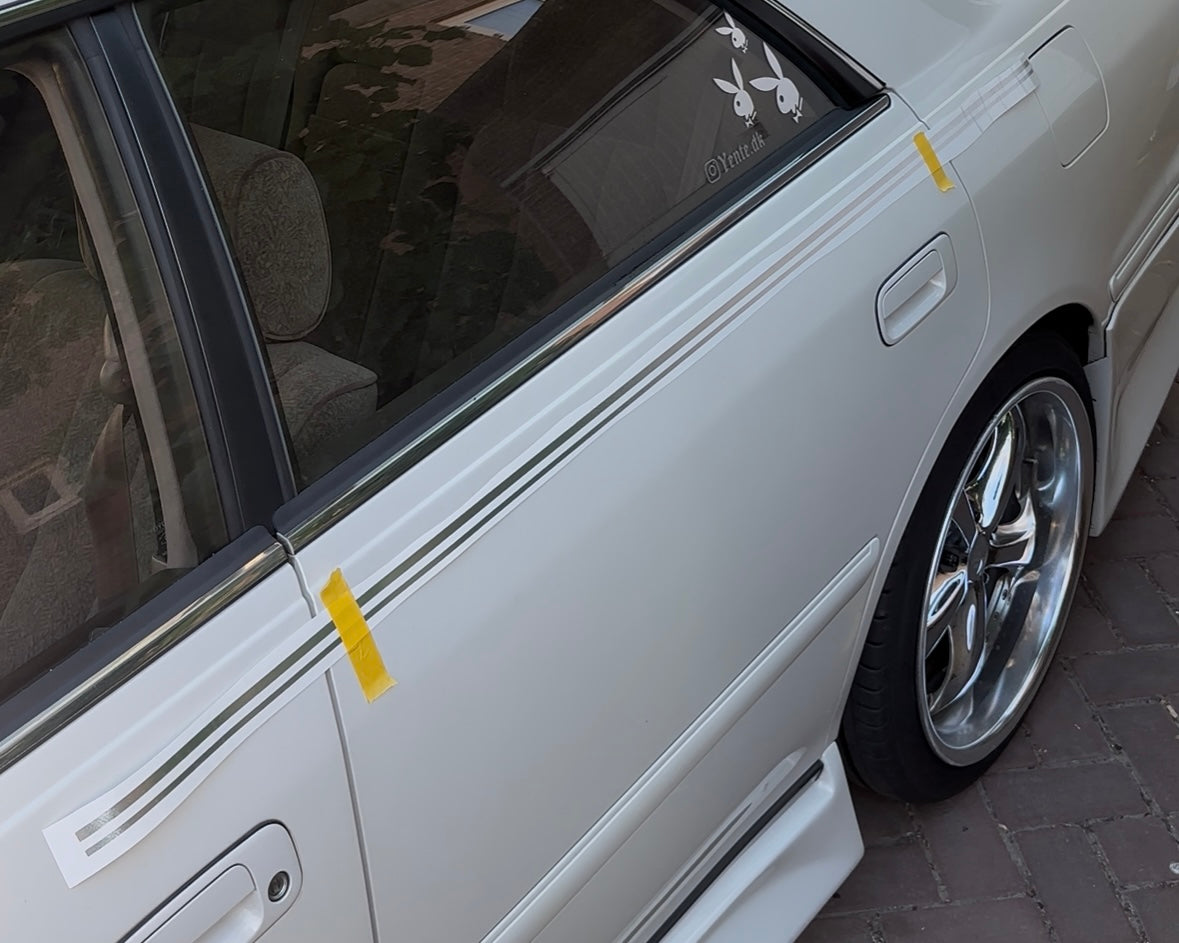

Step 1: Start at the Door
- Begin on the door panel
- Use masking tape to position the stripe
- Center the stripe so there is equal material on both sides
Tip:

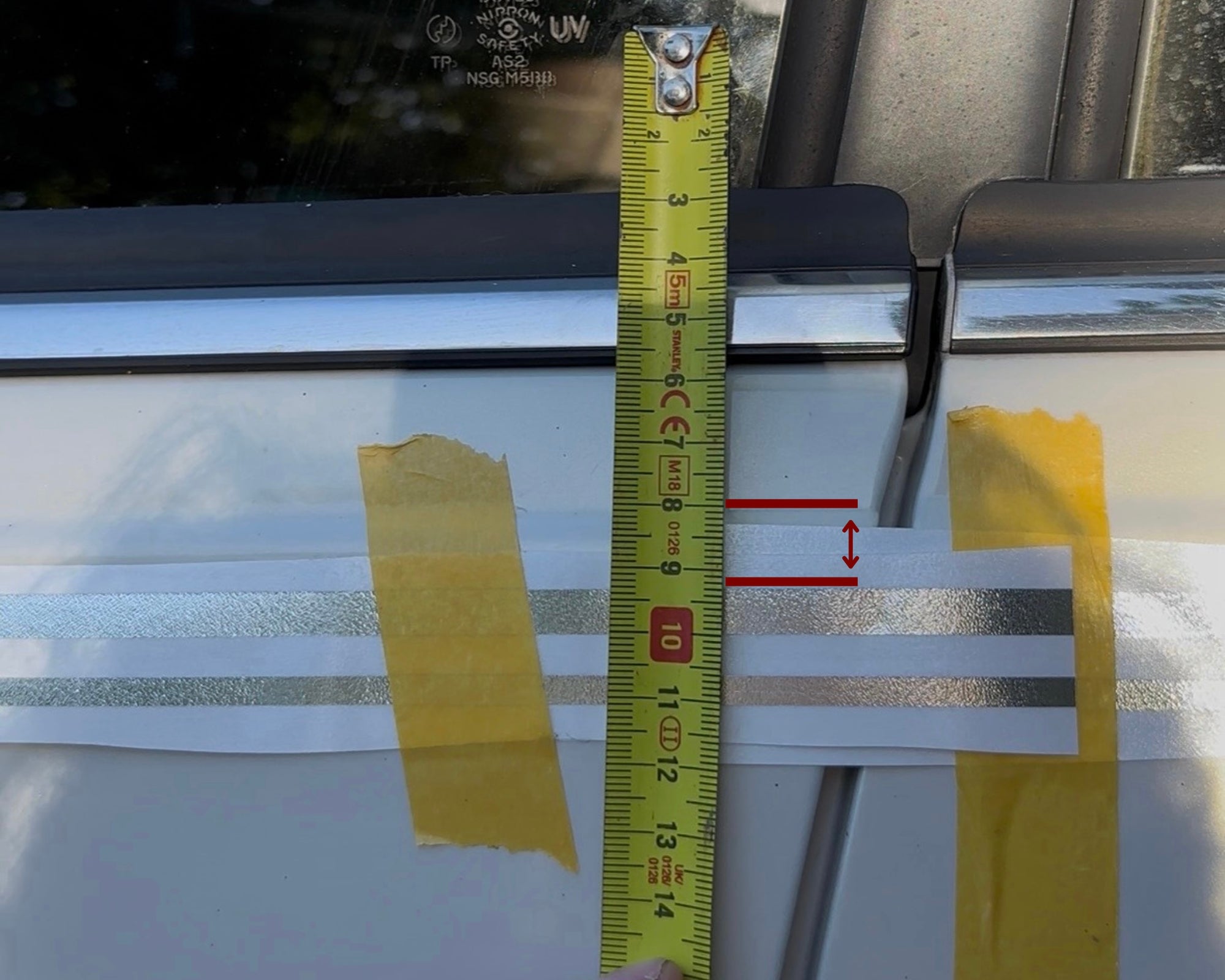

Measure from a line on the car to the stripe on both ends of the door to keep it straight

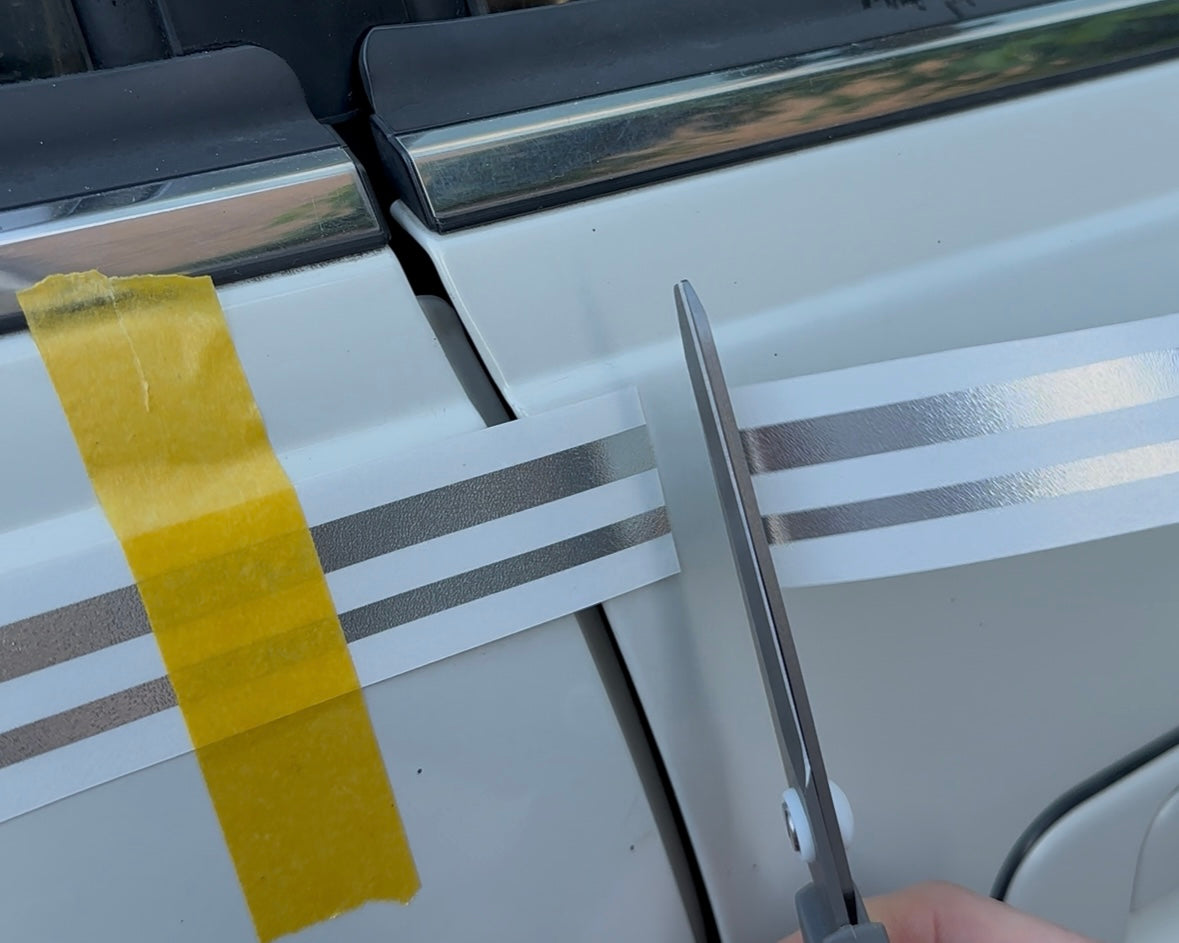

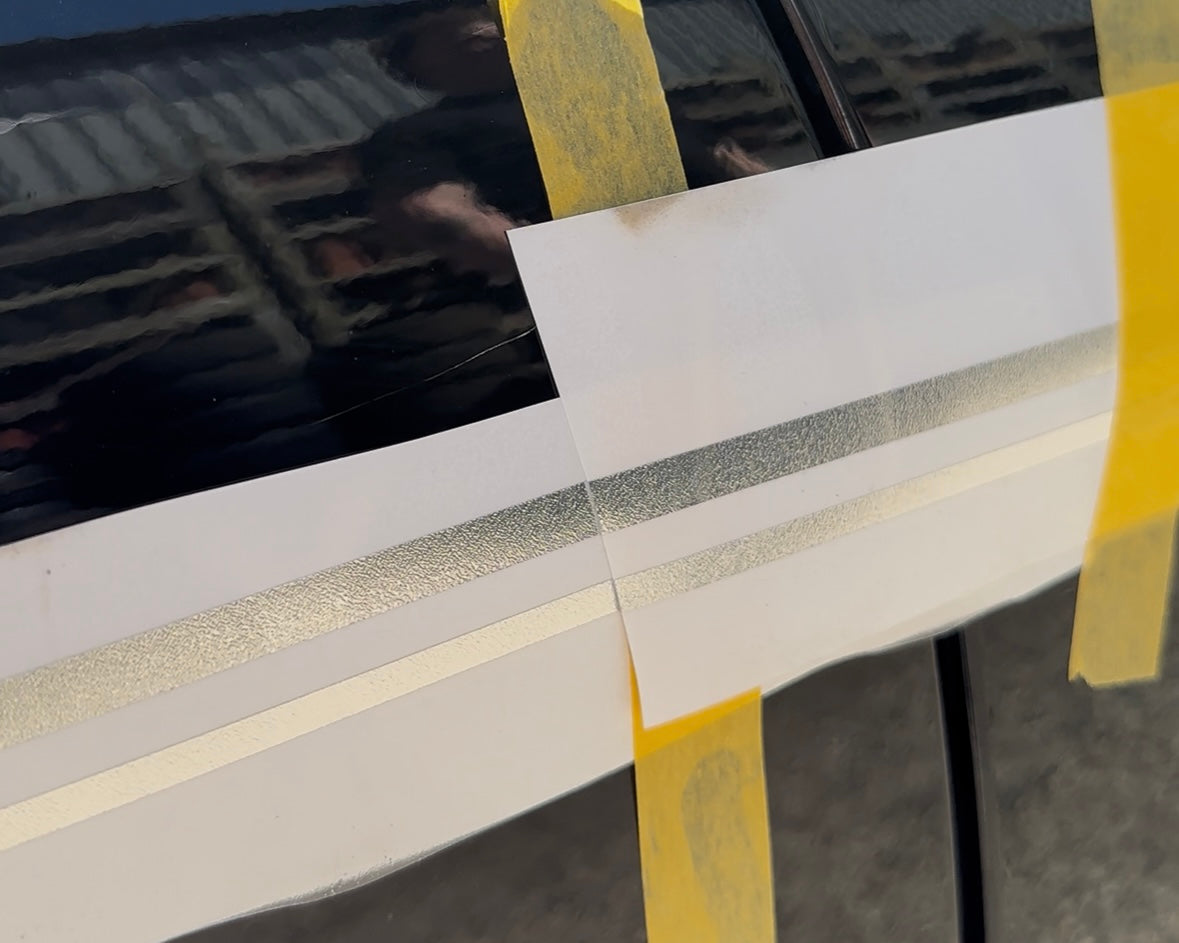

Step 2: Cut Excess
- Cut the excess vinyl on both sides of the door, leave about 1.25 cm (½ inch) past panel gaps
→ This will be tucked later - If you have a 4-door go back to step 1 and do the same on the other door

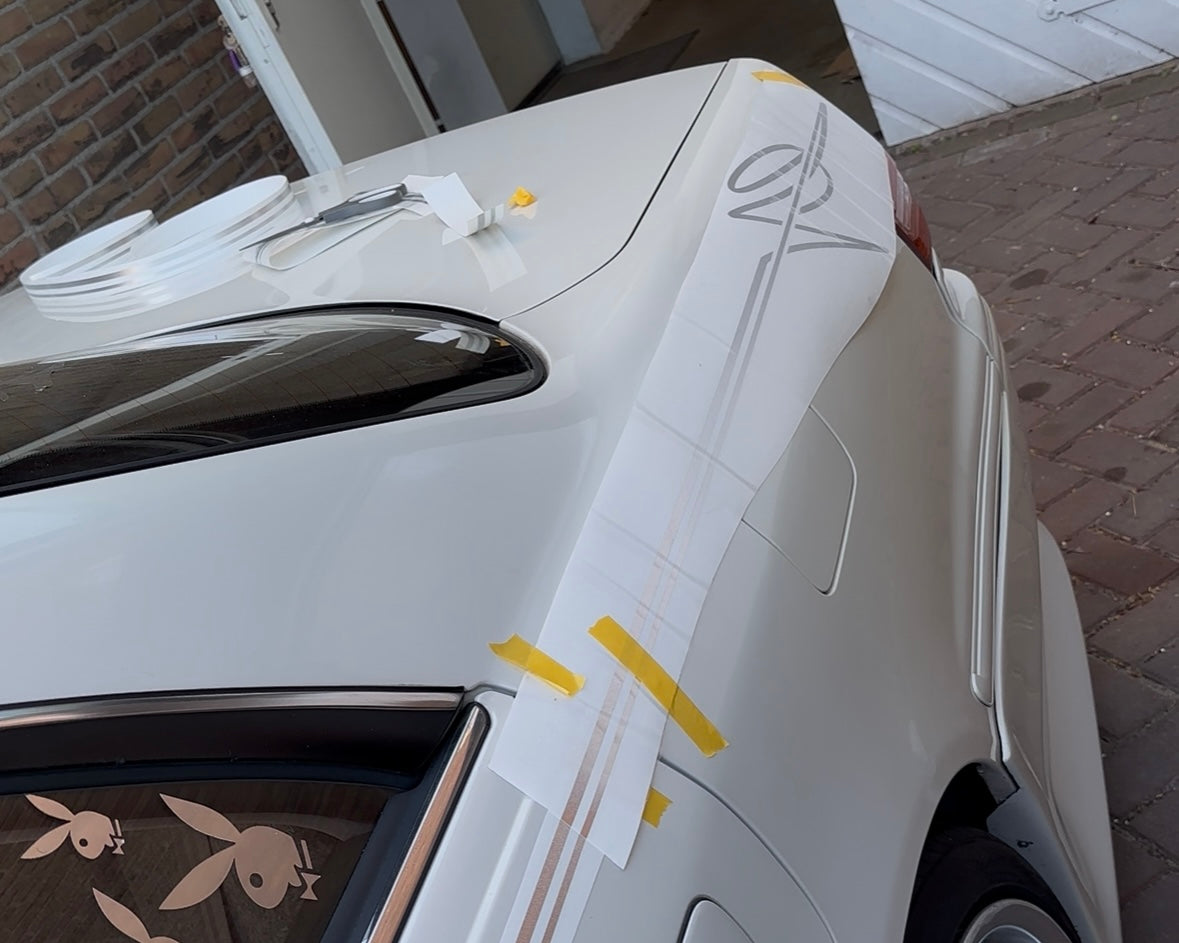

Step 3: Mock Up Rear
- Align the quarter panel piece with the door stripe
Step 4: Mock Up Fender
- Align the fender piece with the door stripe

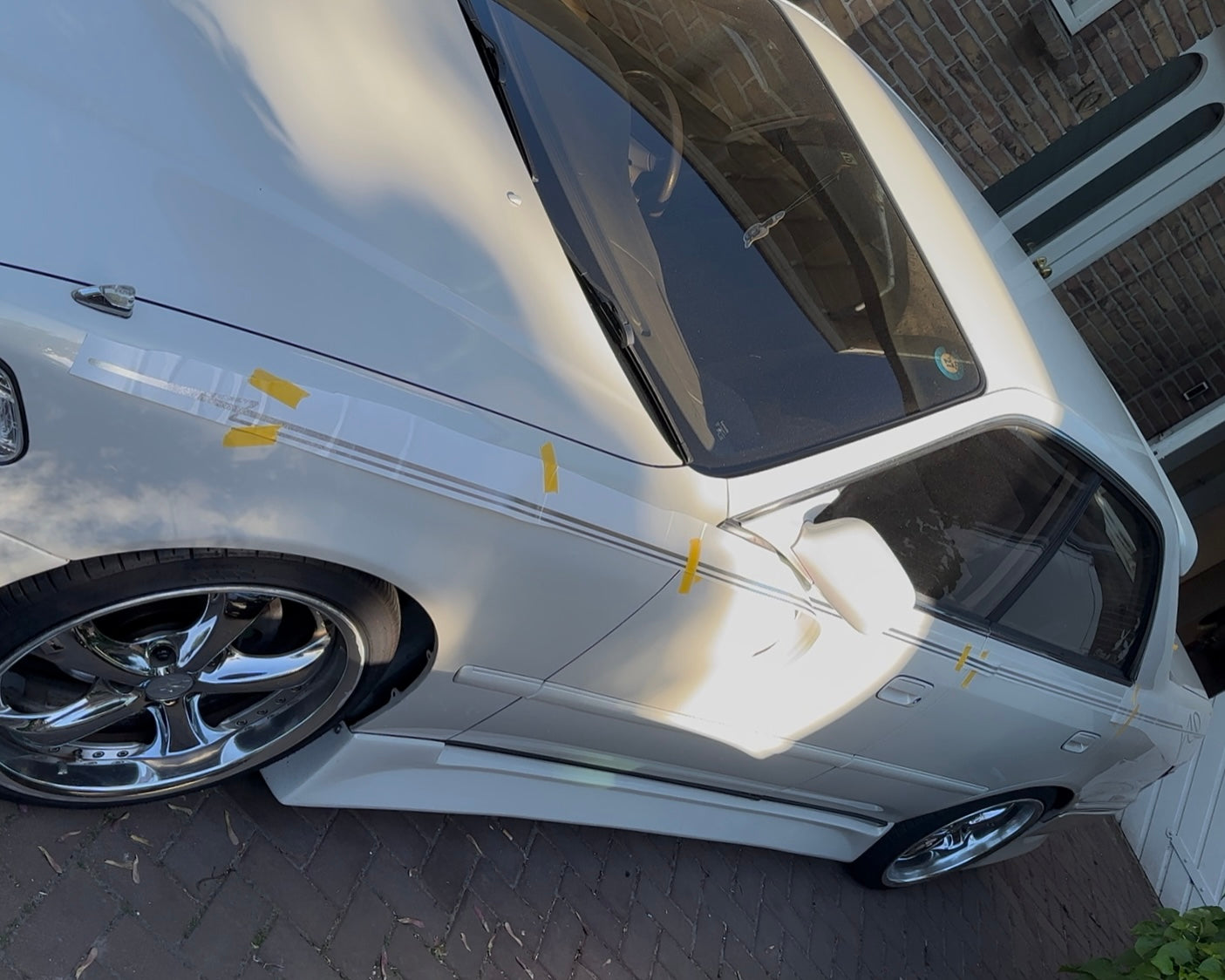

Important: Double-check alignment across all panels
Step 5: Start Installing
- Peel backing and install around a third of the stripe first
- Keep slight tension on the vinyl
- Use a Squeegee or credit card to lay it down
Important: Make sure everything still lines up

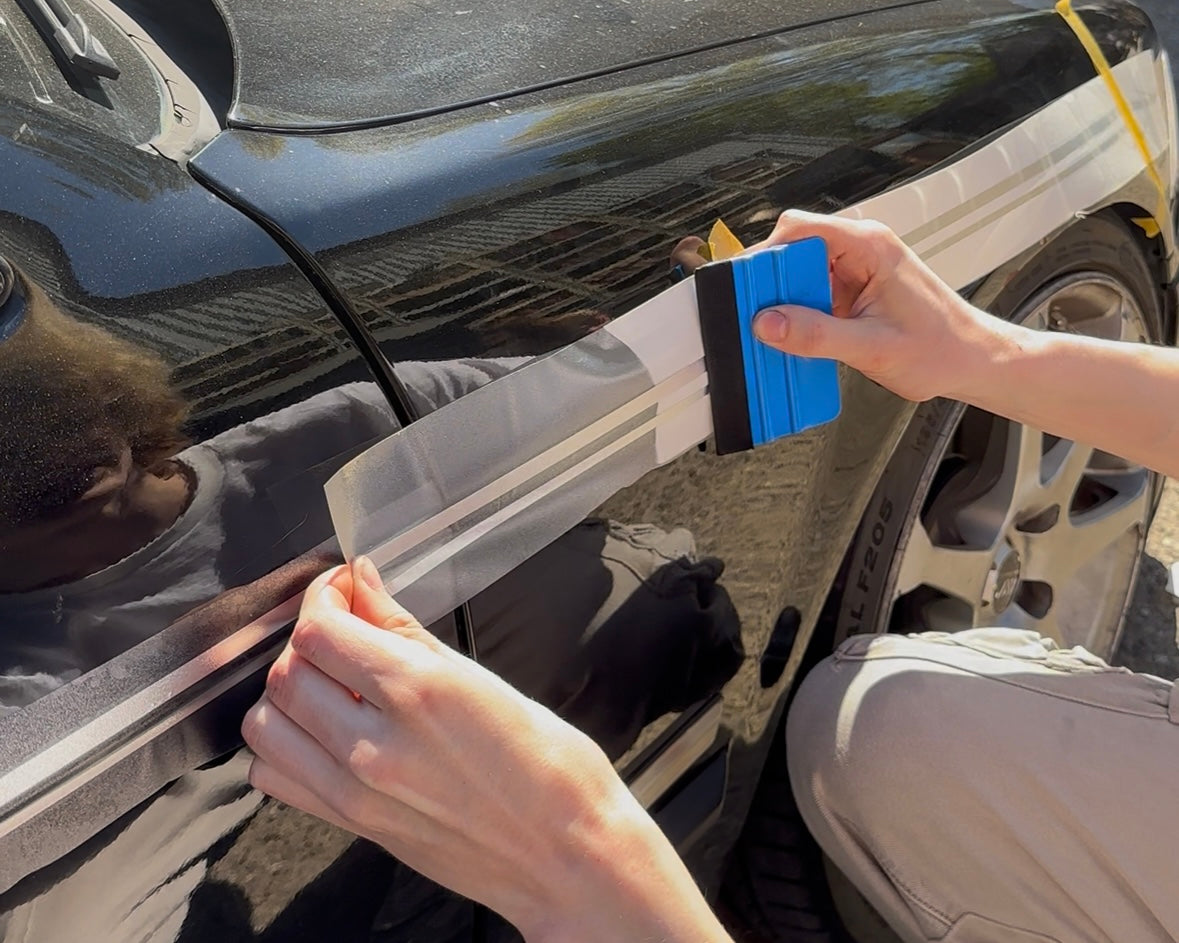

Step 6: Set & Peel
- Squeegee the tranfertape to remove any air
- Slowly peel off the transfer tape
- If vinyl lifts, press it back down
